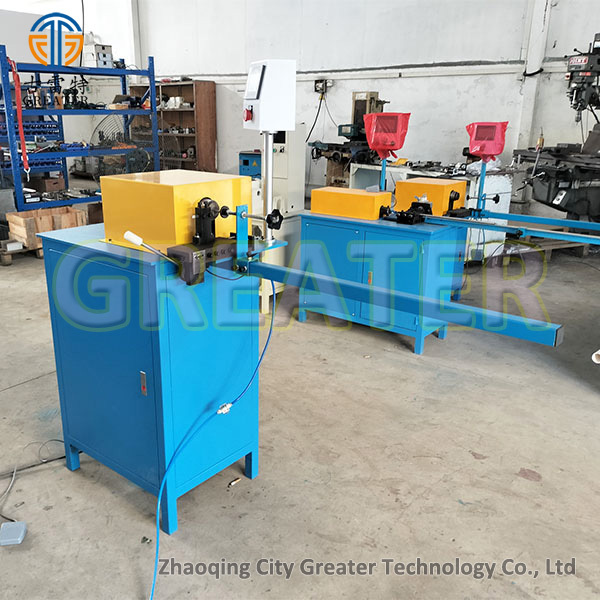

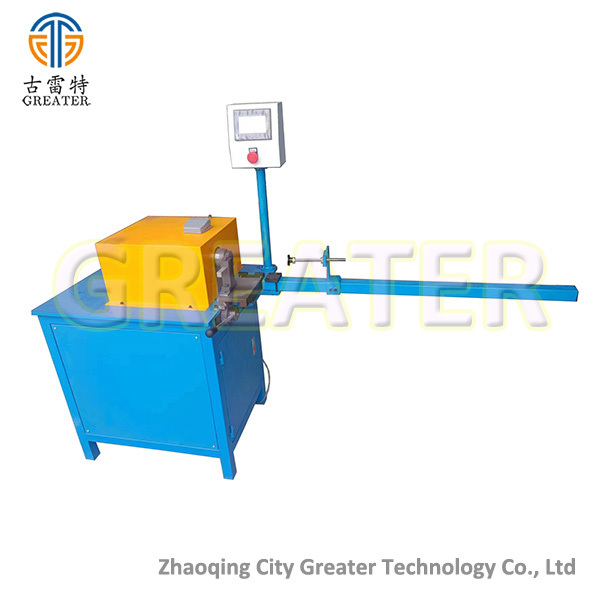

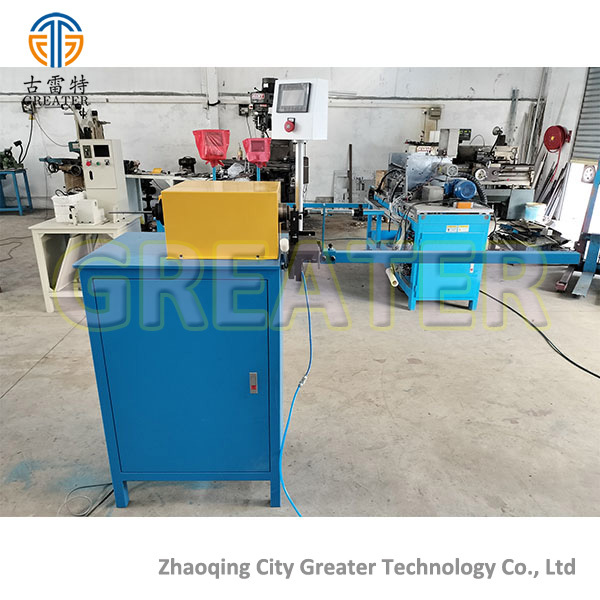

TUBE CUTTING MACHINE GT-CT15

GT-CT15 tube Cuttiing Machine uses a set of rotation fixtures. Tubes are rotated by elastic chucks. Slicer blade will cut the tubes, which is controlled by blade angle. There is almost no bur on the head faces of the cut tubes. This cutting way saves a lot of tube bur cleaning which will happen in other cutting ways. Pneumatic mechanism controls the elastic chucks and works together with cutters. Productioon efficiency is rather high. It can cut 8000 to 10000 tubes in one shift. Position-limit mechanism is used to adjust and control the cutting length. When using this machine, users must make charging barrels and brackets themselves according to the machine's center height.

power: 0.75KW

cutting speed: according to the specification of the tubes, usually about 10000 pcs / 8 hour

tubes can be cut: Φ5-Φ15mm are ok

motor power: 3phase 380V 50HZ or according to customer
