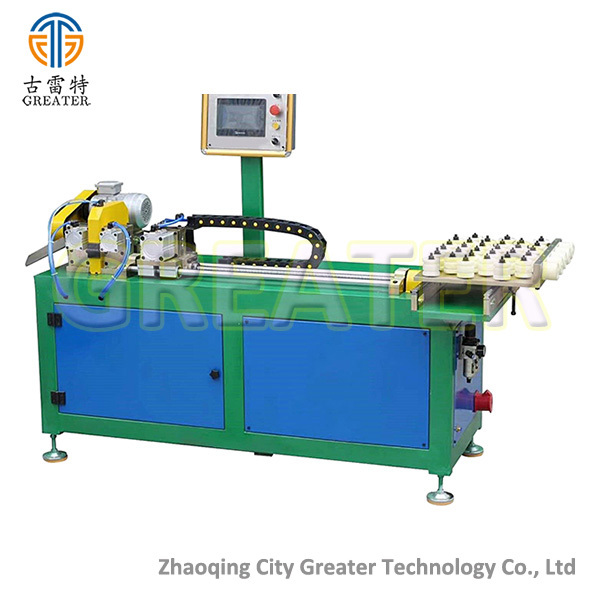

Auto Coil Tube Straightening And Cutting Machine GT-ASCT19

Function:

Straighten the coil tube auto, and auto cut the tube according to the length need. Machine suitable for coil copper tube, aluminum tube to straight and cut.

Application:

Copper coil tube straight and cut, such as copper water heater produciton.

Main Data:

1. Suitable OD of tube: Φ4-Φ19mm;

2. Wall-thickness: 0.2-2.0mm;

3. Feeding speed: 0-60mm/min;

4. Cutting method: rotary cutting;

5. Min length to cut: 25mm;

6. Power supply: 3phase 380V, 50HZ or according to order;

7. Air supply: 0.4-0.8Mpa clean compressed air;
