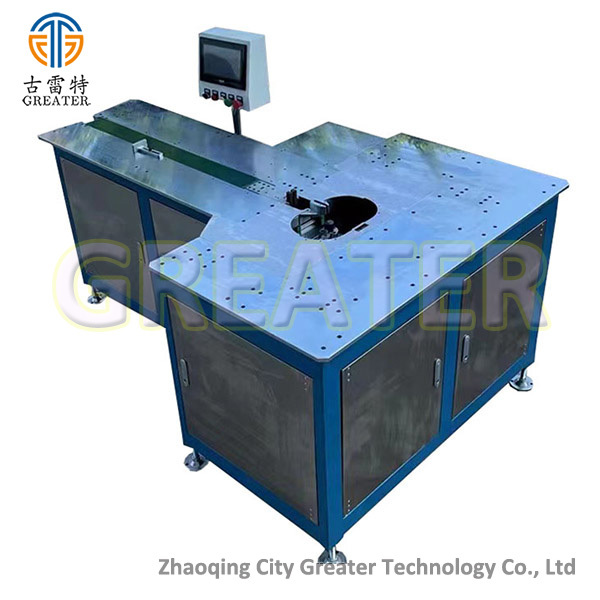

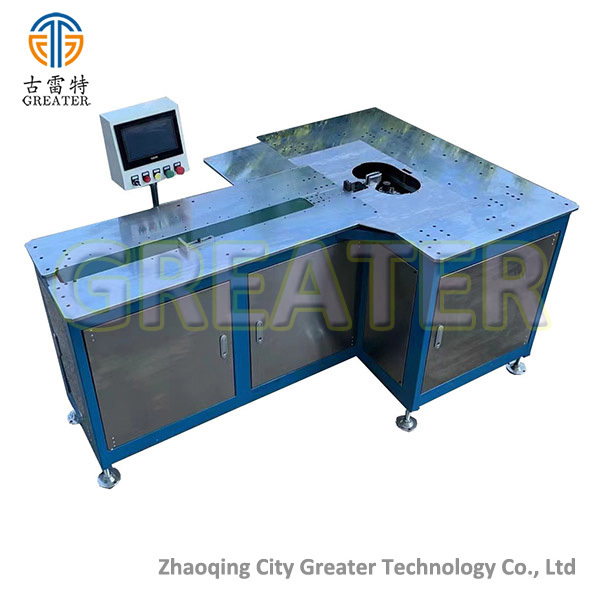

MULTI-ANGLE BENDING MACHINE GT-WGMA201

MULTI-ANGLE BENDING MACHINE GT-WGMA201

Function:

Bend heater in multi shape/angle.

Main features:

**power supply: 220V;
**motor power: 5.1KW;
**air supply: 0.5Mpa;
**with touch screen and PLC control;
**with 3 bending elbow;
**max can store 20 designs;
**for 6.6mm heater, can bend 3-4 pcs one time,;
**for 8mm heater, can bed 2 pcs one time;
**length to bend: 400-3000mm；
**Woking speed: U shape/2 second;
**Size: 2.2*1.5*0.88 M;

Application:

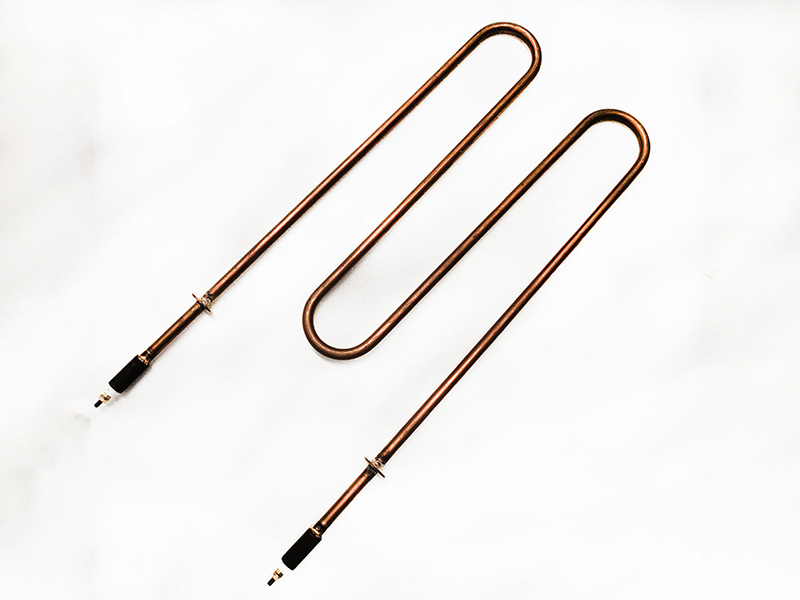

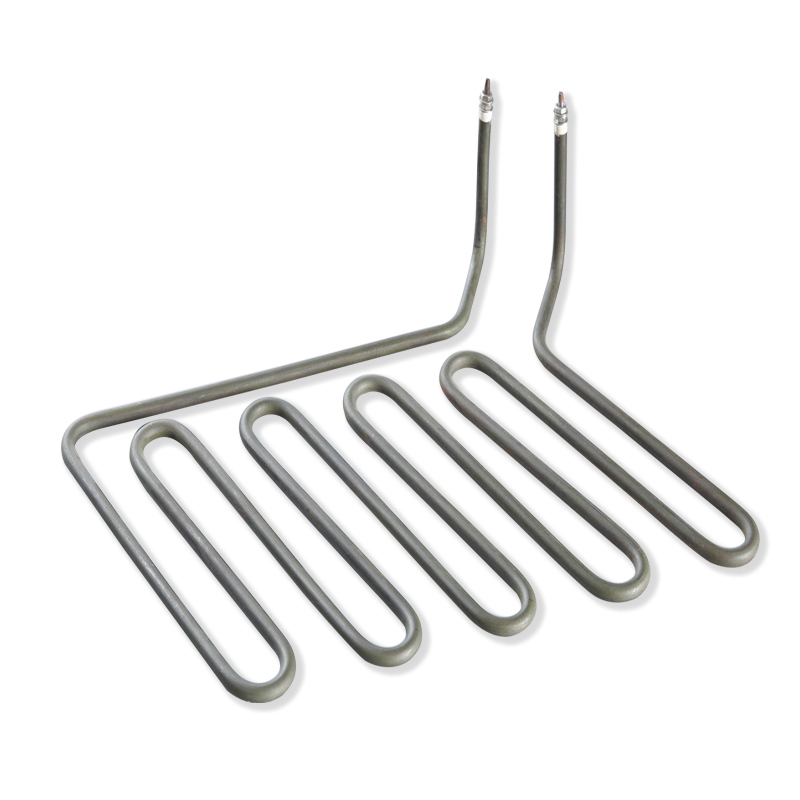

Bend heaters, specially for tubular heater bending in bulk produciton.

Information need for order GT-WGMA203 Multi Angle Bending Machine:
Drawing of heater to bend;

Diameter of heater, such as 8.5mm

Length of heater to bend;

Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz)；

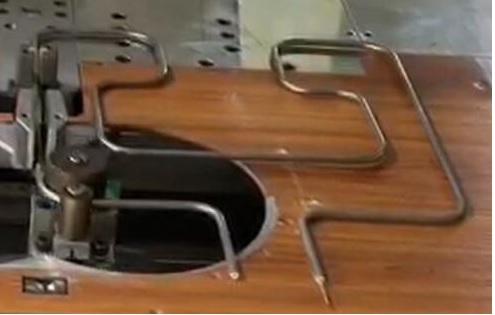

Please watch the following video of the machine in action:
