GT-JY12 12 Station Roll Reducing Machine Electric Heater Equipment

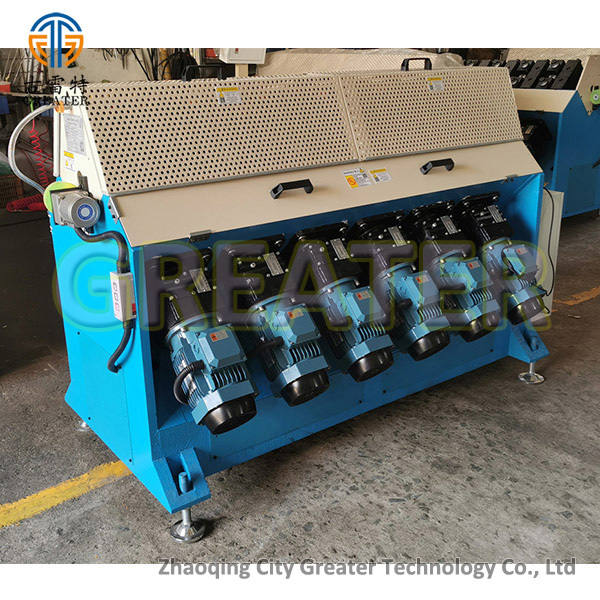

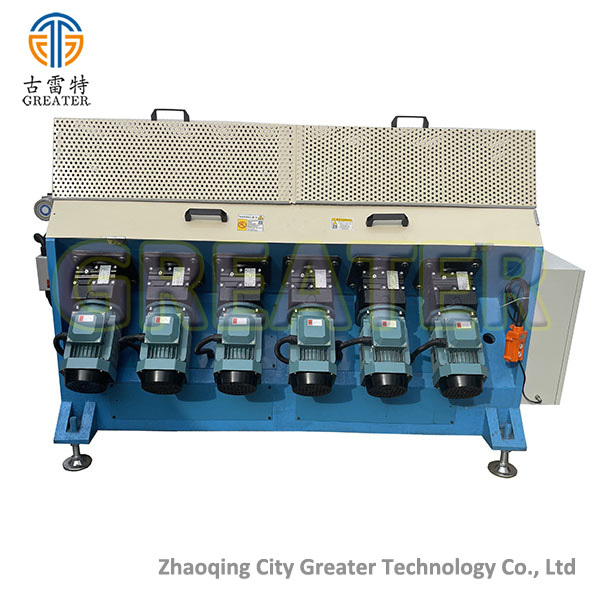

GT-JY12 12 Station Roll Reducing Machine

Item number: GT-JY12

Station: 12 station

Single motor power:0.75/1.1kW

Speed: uniform speed or un-uniform speed according to order.

Function:

Reduce heater to increase density;

Main features:

1. whole casting for body of the machine, ensure stable use in future.;

2. According to different diameters and orders, can make in uniform speed or un-uniform speed;

3. change related rollers can reduce different diameters heaters;

4. When the pipe is blocked, the machine will automatic shutdown;

5. with small size, less noise, easy adjustment;

6. suitable for different materiall metal tubes;

7. change rollers, can reduce round, square, flat heaters.

8. can make in 12 station, 18 station and 21 station.

Application:

Round heater reduce, such as tubular heater, cartridge heater, cable heater;

Oblate heater reduce, such as railway heater reduce, fryer heater;

Information need for order GT-JY12 roll reducing machine:

Tube diameter before and after reduce, such as Φ10-8.5mm

Length before reduce；

Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz)；

Please watch the following video of the machine in action:
